Product Description

NC controlled horizantal bandsaws with linear guideways are ideal for mitre cuts with different quantities .

With movement of bow it’s possible to cut between 90° and +30°.

You can do 10 different programming (lenght and quantity) and can be watched on digital panel.

Measurement is done by repeating the stroke accouring to 500 length stroke Cutting capacity at 90° is 540mm x 670mm for flat type and 540 mm for round shaped materials.

With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled mechanical switch.

Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine.

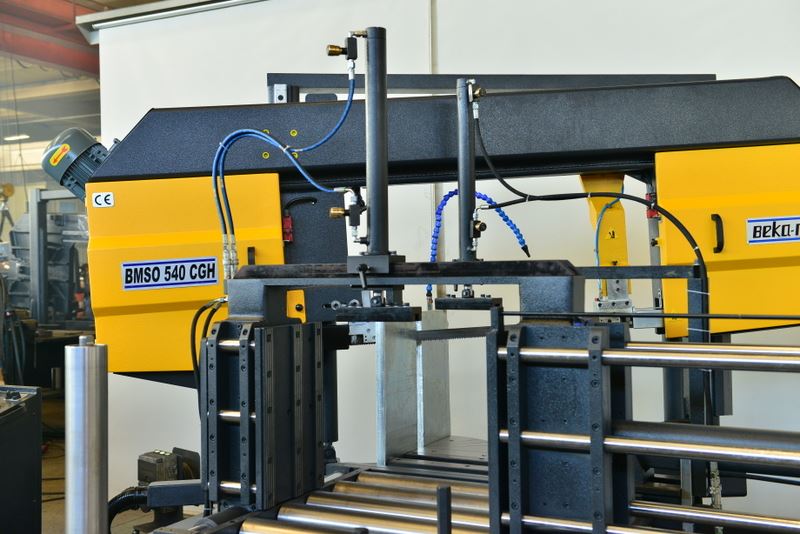

As in all Bekamak products in BMSO 540CGH, safety is most important priority and all mechanical and electrical devices are set for best safety mesaures.

Standard Features

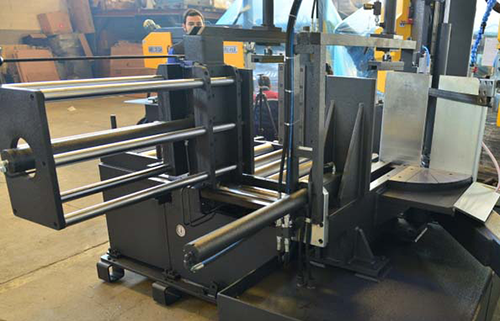

Hydraulic Feeding Vice

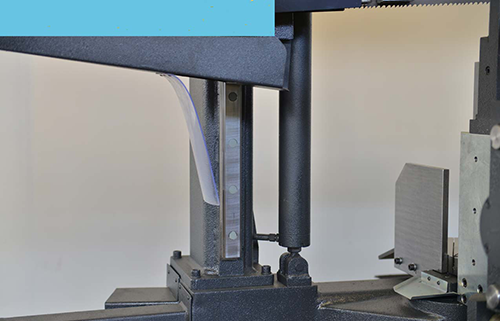

Lineer Way
Saw Blade 41
Hydromecanic Blade Tension
Heavy Duty Gearbox
Pressure Adjustment

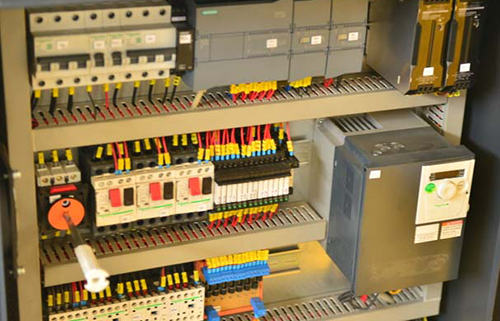

PLC Control Panel
Hyd. Clamping for Angle
Security Switch

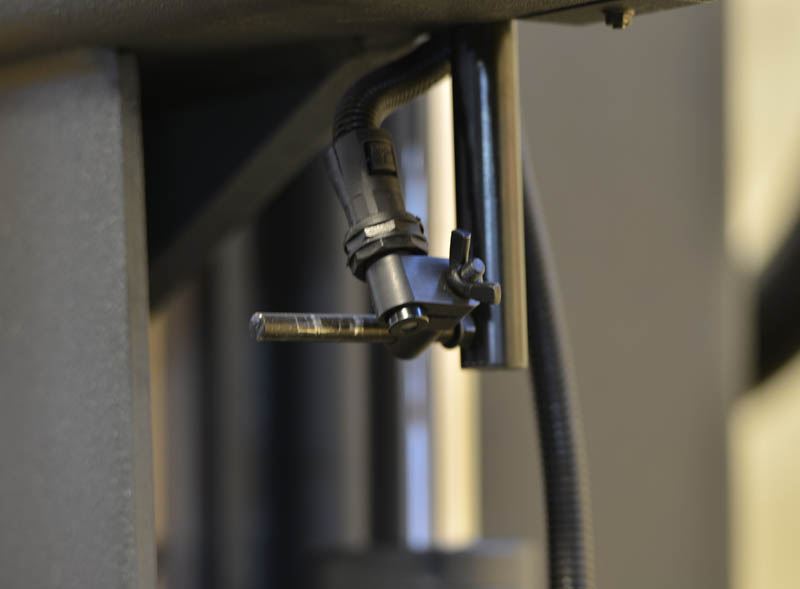

SAP Coolant Pump
Saw Blade Brash
Optical Height Adjustment
3 inclined Blade

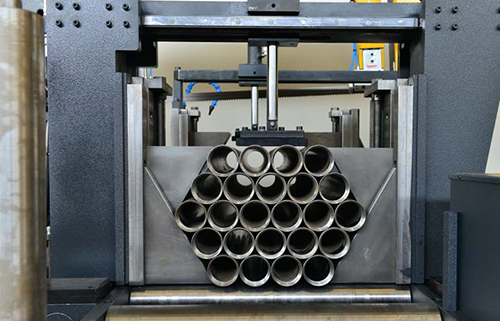

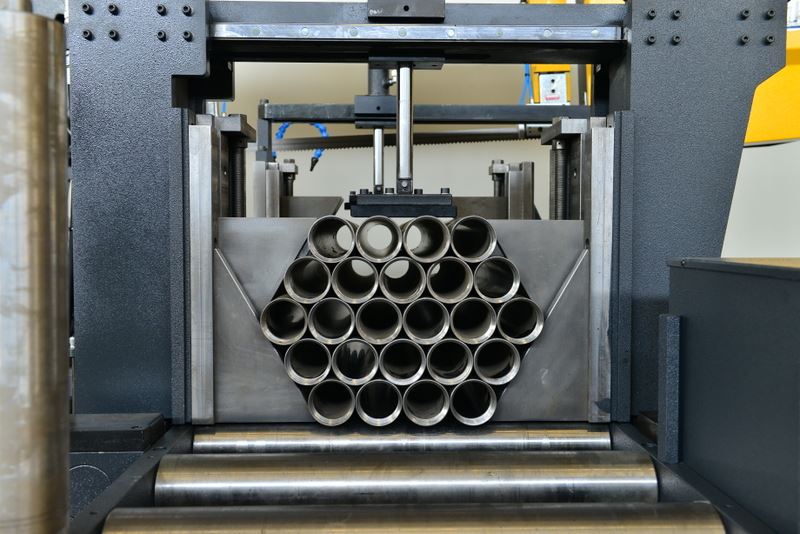

Hydraulic Vice
Proximity switch for sensing blade slippage
Offered Hydraulic Rear Vise

Optional Features
Technical Details
Round Cutting Capacity mm 540
Flat Cutting Capacity mm 670 x 540
Square Cutting Capacity mm 540
+30° Round Cutting Capacity mm 540
+30° Flat Cutting Capacity mm 600 x 540
+30° Square Cutting Capacity mm 540
+45° Round Cutting Capacity mm 510
+45° Flat Cutting Capacity mm 450 x 540
+45° Square Cutting Capacity mm 450
+60° Round Cutting Capacity mm 270
+60° Flat Cutting Capacity mm 250 x 540
+60° Square Cutting Capacity mm 250
Main Drive Motor kW 4
Hydraulic Motor kW 2,2
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 – 100
Band Dimensions mm 6000x41x1,3
Working Height mm 805
Weight kg 3800
Length mm 3100
Width mm 2350
Height mm 2150
