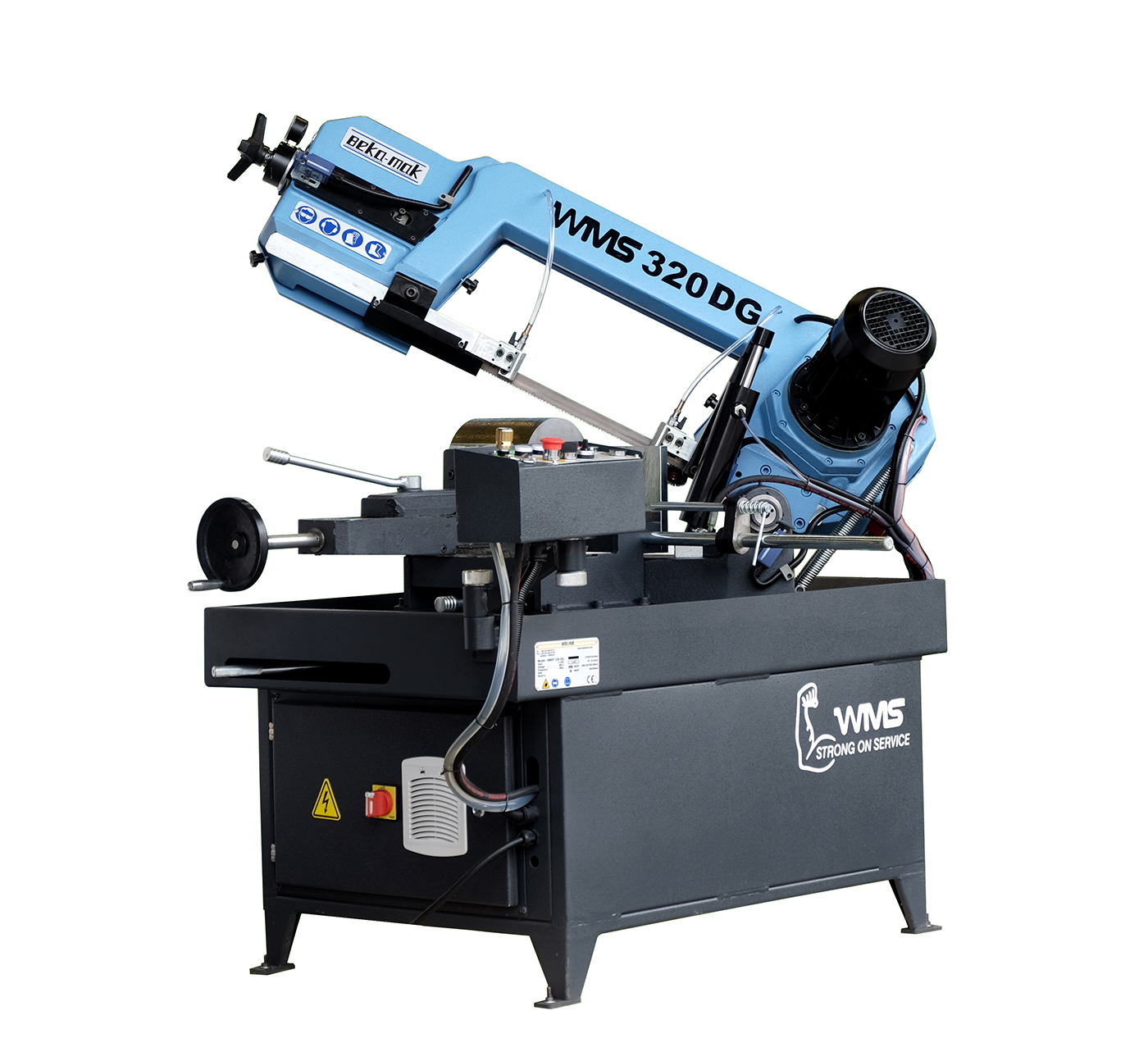

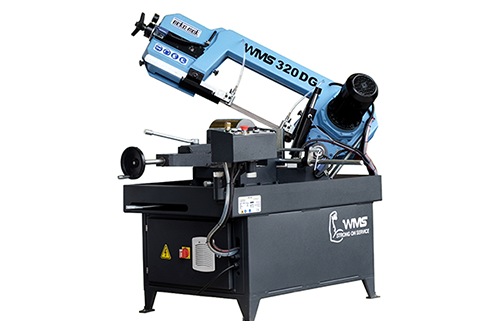

WMS-320DGY

Product Description

Machine description :
• semi-automatic double miter for cutting profiles and
Solid material in steel and non-ferrous material and excellent price-performance ratio
• robust constructed monoblock saw frame

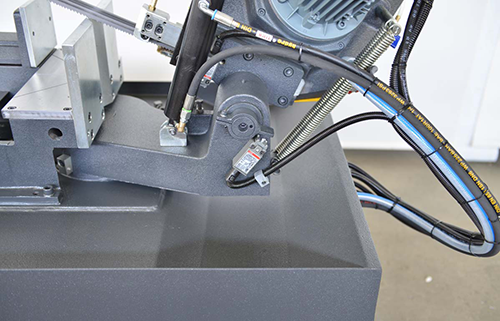

• manually swiveling saw frame with hydraulic clamping for optimal
Miter (not BMSY 270 DGH )

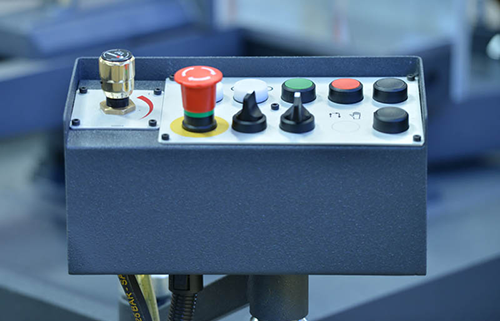

• miter on mobile control panel digitally readable (not BMSY 270 DGH )

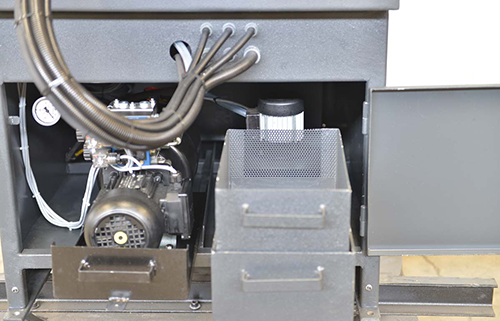

• Hydraulic clamping of the horizontal vise
• automatic saw frame raising on the cut end

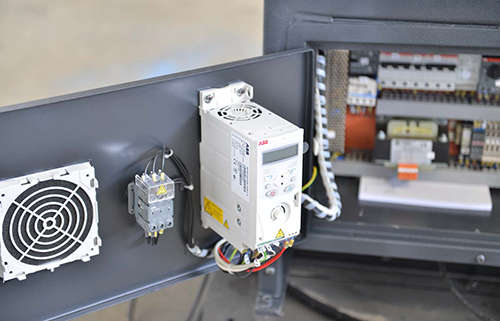

• continuously adjustable belt speed 34-68 m / min BMSY 270 DGH /
20-100 m / min BMSY DGH 360 /440 DGH
• Sensitive cutting pressure regulation function of the material properties

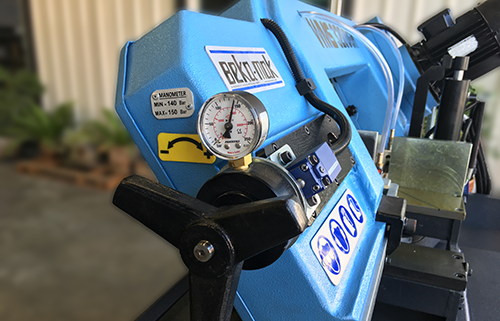

• hydraulic-mechanical belt tension
• tape guide with hard metal pads sheets and rolls

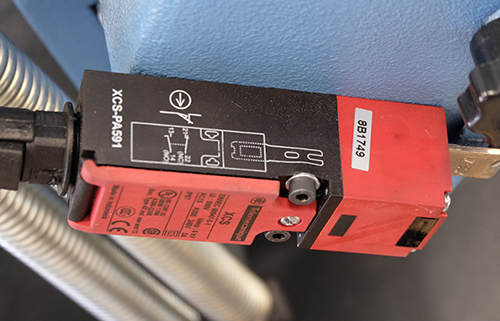

• thermal overload protection and no-volt release
• Automatic shut-off after cut end
• automatic belt break protection Driven

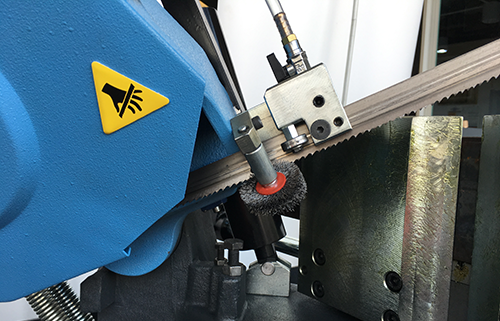

• Chip brush on impeller ( not BMSY 270 DGH )

Standard Features
Optional Features
Technical Details
PARAMETER UNIT UNIT
Round Cutting Capacity mm 230
Flat Cutting Capacity mm 320 x 130
Square Cutting Capacity mm 230
-45 Round Cutting Capacity mm 180
-45° Flat Cutting Capacity mm 230 x 100
-45° Square Cutting Capacity mm 150
+45° Round Cutting Capacity mm 210
+45° Flat Cutting Capacity mm 230 x 160
+45° Square Cutting Capacity mm 180
+60° Round Cutting Capacity mm 120
+60° Flat Cutting Capacity mm 120 x 100
+60° Square Cutting Capacity mm 100
Main Drive Motor kW 1,0 – 1,3
Hydraulic Motor kW 0,37
Coolant Pump kW 0,12
Cutting Speeds m/min. 35 – 70
Band Dimensions mm 2730x27x0,9
Working Height mm 760
Weight kg 430
Lenght mm 1350
Width mm 700
Height mm 1300
