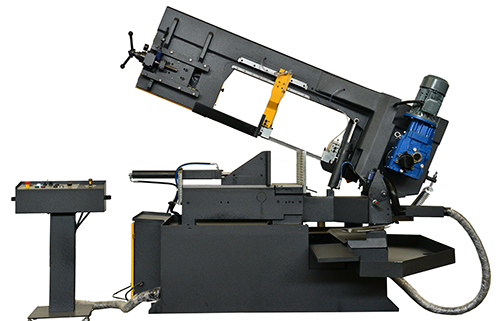

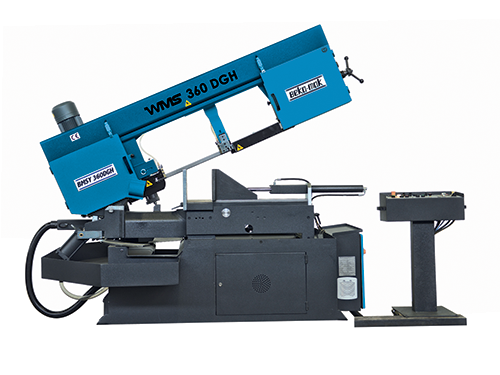

WMSY 360 DGH ECO
Machine description :
• semi-automatic double miter for cutting profiles and
Solid material in steel and non-ferrous material and excellent price-performance ratio
• robust constructed monoblock saw frame
• manually swiveling saw frame with hydraulic clamping for optimal
Miter (not BMSY 270 DGH )
• miter on mobile control panel digitally readable (not BMSY 270 DGH )
• Hydraulic clamping of the horizontal vise
• automatic saw frame raising on the cut end
• continuously adjustable belt speed 34-68 m / min BMSY 270 DGH /
20-100 m / min BMSY DGH 360 /440 DGH
• Sensitive cutting pressure regulation function of the material properties
• hydraulic-mechanical belt tension

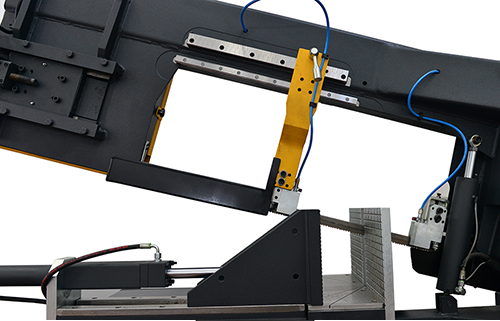

• tape guide with hard metal pads sheets and rolls
• thermal overload protection and no-volt release
• Automatic shut-off after cut end
• automatic belt break protection Driven
•Chip brush on impeller ( not BMSY 270 DGH )

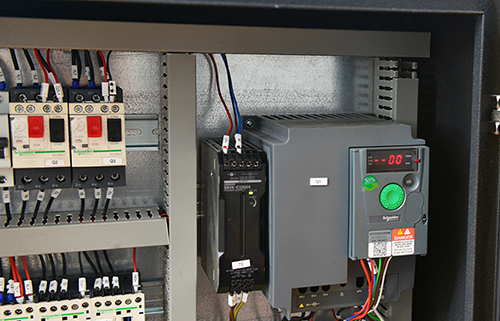

Inverter

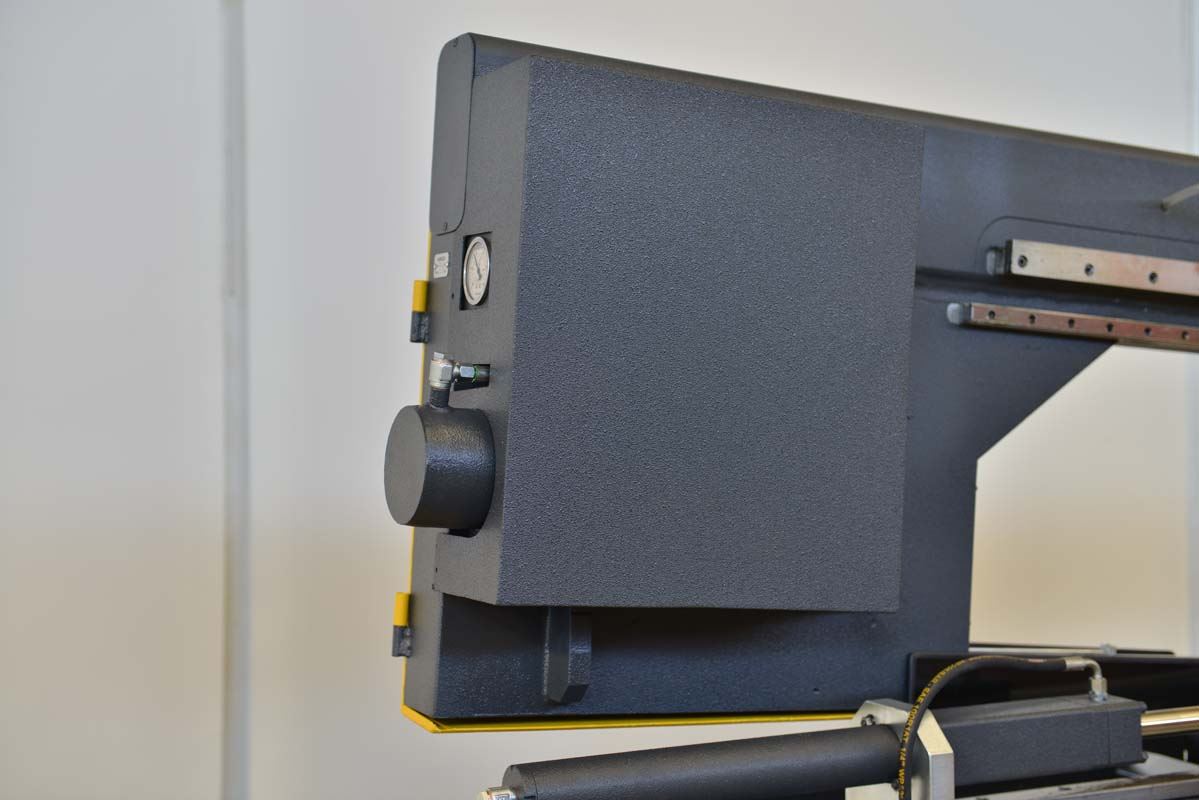

Hydromecanic Blade Tension
Hydraulic Vice
Security Switch

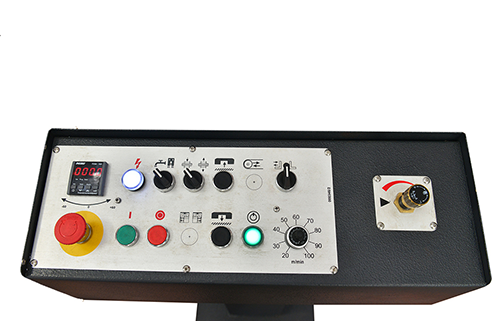

Control Panel
Movable Arm/Vice

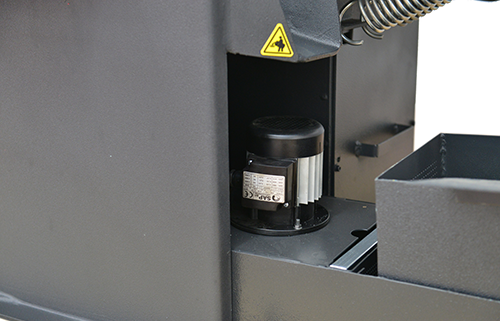

SAP Coolant Pump

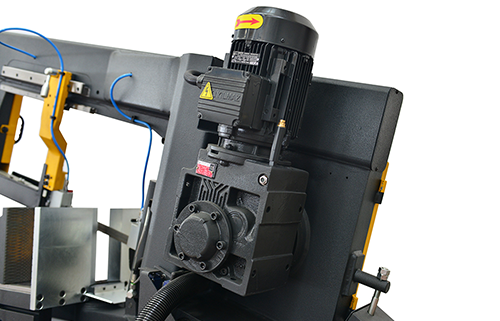

Heavy Duty Gearbox
Saw Blade 34

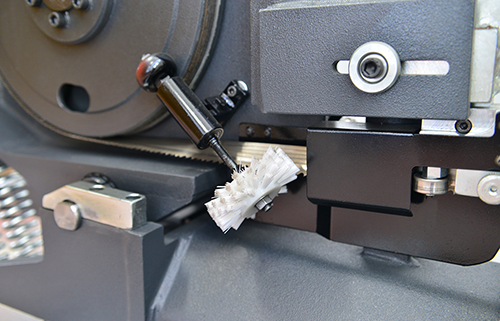

Saw Blade Brash
| PARAMETER | UNIT | UNIT |
| Round Cutting Capacity | mm | 360 |
| Flat Cutting Capacity | mm | 510 x 360 |
| Square Cutting Capacity | mm | 360 |
| +30° Round Cutting Capacity | mm | 360 |
| +30° Flat Cutting Capacity | mm | 510 x 360 |
| +30° Square Cutting Capacity | mm | 360 |
| +45° Round Cutting Capacity | mm | 360 |
| +45° Flat Cutting Capacity | mm | 390 x 360 |
| +45° Square Cutting Capacity | mm | 360 |
| +60° Round Cutting Capacity | mm | 200 |
| +60° Flat Cutting Capacity | mm | 200 x 360 |
| +60° Square Cutting Capacity | mm | 200 |
| -30° Round Cutting Capacity | mm | 360 |
| -30° Flat Cutting Capacity | mm | 510 x 360 |
| -30° Square Cutting Capacity | mm | 360 |
| -45 Round Cutting Capacity | mm | 360 |
| -45° Flat Cutting Capacity | mm | 390 x 360 |
| -45° Square Cutting Capacity | mm | 360 |
| -60° Round Cutting Capacity | mm | 260 |
| -60° Flat Cutting Capacity | mm | 260 x 360 |
| -60° Square Cutting Capacity | mm | 260 |
| Main Drive Motor | kW | 3 |
| Hydraulic Motor | kW | 0,37 |
| Coolant Pump | kW | 0,12 |
| Chip Conveyor Motor | kW | 0,25 |
| Cutting Speeds | m/min. | 20 – 100 |
| Band Dimensions | mm | 4800x34x1,1 |
| Working Height | mm | 860 |
| Weight | kg | 1450 |
| Length | mm | 2650 |
| Width | mm | 1210 |
| Height | mm | 1870 |
